swisstopo MODELS FOR REVERSE ARCHITECTURE & DESIGN
Feasibility study for the transformation of a historic building in the countryside (Vaud, CH). No graphic documentation exists for this object built in the 1920’s.
![01_swisstopo_compiled_in_cad](https://www.bernardcherix.ch/wp-content/uploads/2021/05/01_swisstopo_compiled_in_cad.png)
01. Compilation in CAD software of swisstopo models (trees have been added afterwards). Building to be studied in orange
![02_swisstopo&architectural_model](https://www.bernardcherix.ch/wp-content/uploads/2021/05/02_swisstopoarchitectural_model.png)
02. Reverse architecture: swisstopo building replaced by parametric mockup ready for simulations of transformation
PROCESS
01. COMPILATION OF THE TOPOGRAPHIC POINT CLOUD AND BUILDINGS MESH
– Reduction of point density on the topographic file *)
– Compilation in CAD software of the georeferenced files: open formats .xyz for topography (swissALTI3D) and .dxf for buildings (swissBUILDINGS3D 2.0). They become objects
02. PRODUCTION OF THE PARAMETRIC MOCKUP –REVERSE ARCHITECTURE–
– Using swisstopo building object as gauge to produce a parametric envelope of the historic building
– Production of a LOD 200 mockup based on photograph and on site floor hight measurements
– Algorithmic extractions of horizontal and vertical sections of the mockup for the publication of plans as well as illustrations (see below)
03. DESIGN STRATEGY –step-by-step transformation–

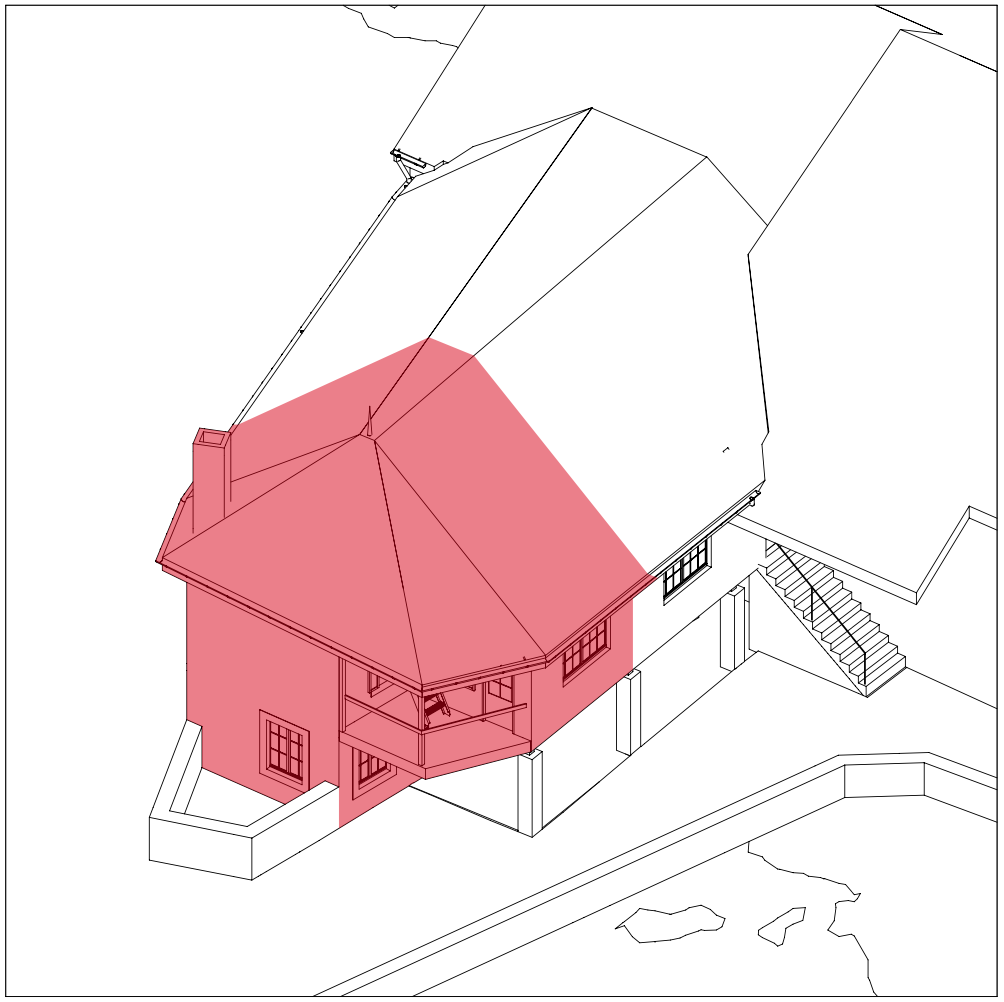

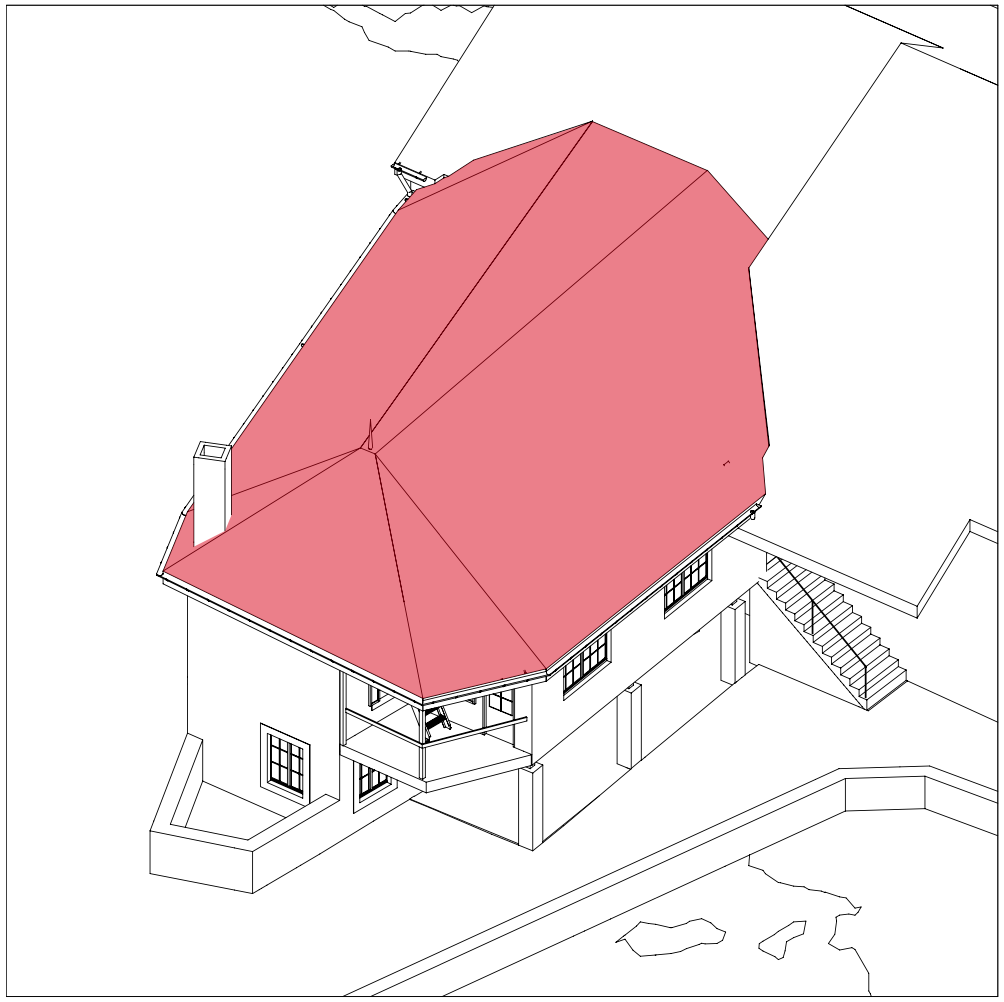

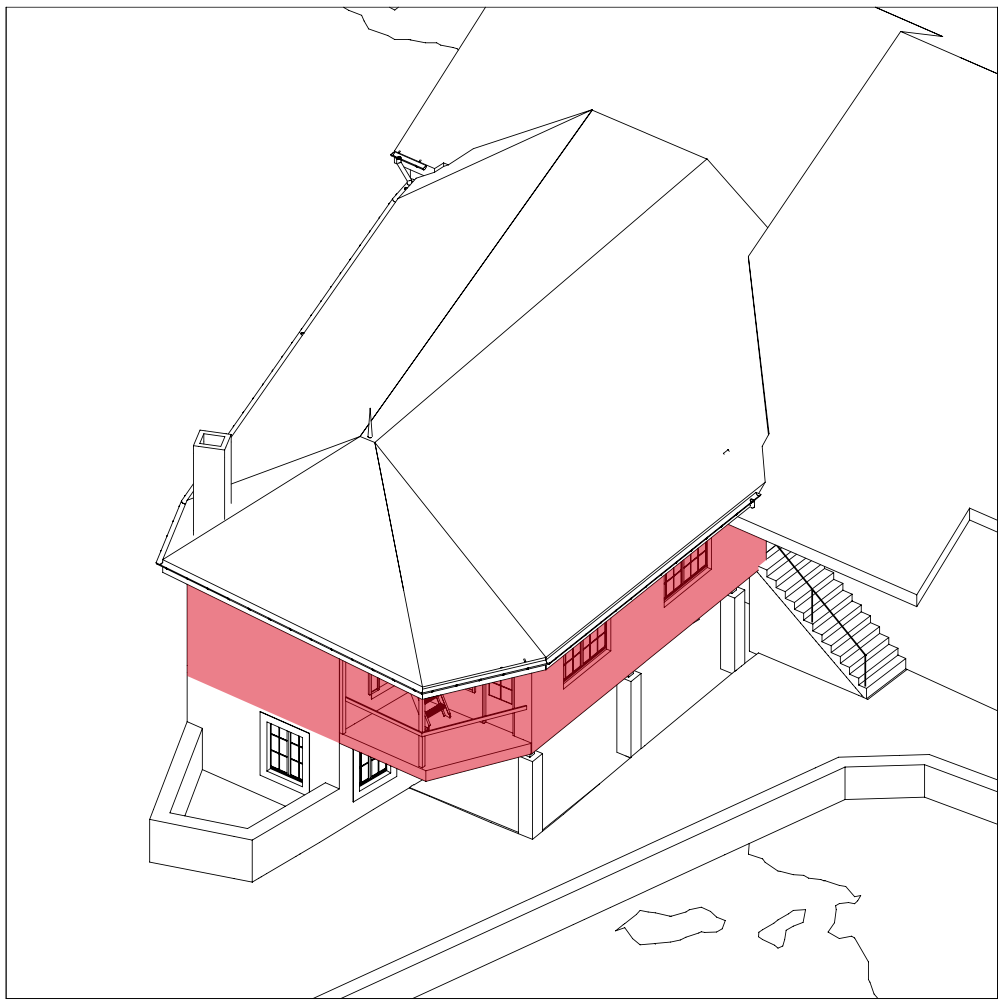

– three scenarios as part of a feasibility study:
![2104_isometrie_structure](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_isometrie_structure.png)
PLANS from ground floor to rooftop
![2104_p00](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_p00.png)
![2104_p01](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_p01.png)
![2104_p02](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_p02.png)
![2104_p03](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_p03.png)
SECTIONS
![2104_caa](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_caa.png)
![2104_cbb](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_cbb.png)
FASSADES
![2104_fn](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_fn.png)
![2104_fs](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_fs.png)
![2104_fe](https://www.bernardcherix.ch/wp-content/uploads/2021/05/2104_fe.png)
swissBUILDINGS3D and swissALTI models compiled in CAD
![2104_isometrie_village](https://www.bernardcherix.ch/wp-content/uploads/2021/06/2104_isometrie_village.jpeg)
*) Worst case scenario: the site is located at the intersection of four tiles. To produce its topography 16’000’000 points should be imported in the CAD software to generate a mesh (see print screen, medallion on home page). This makes the topography too complex to be exploited (back to top of the page).
